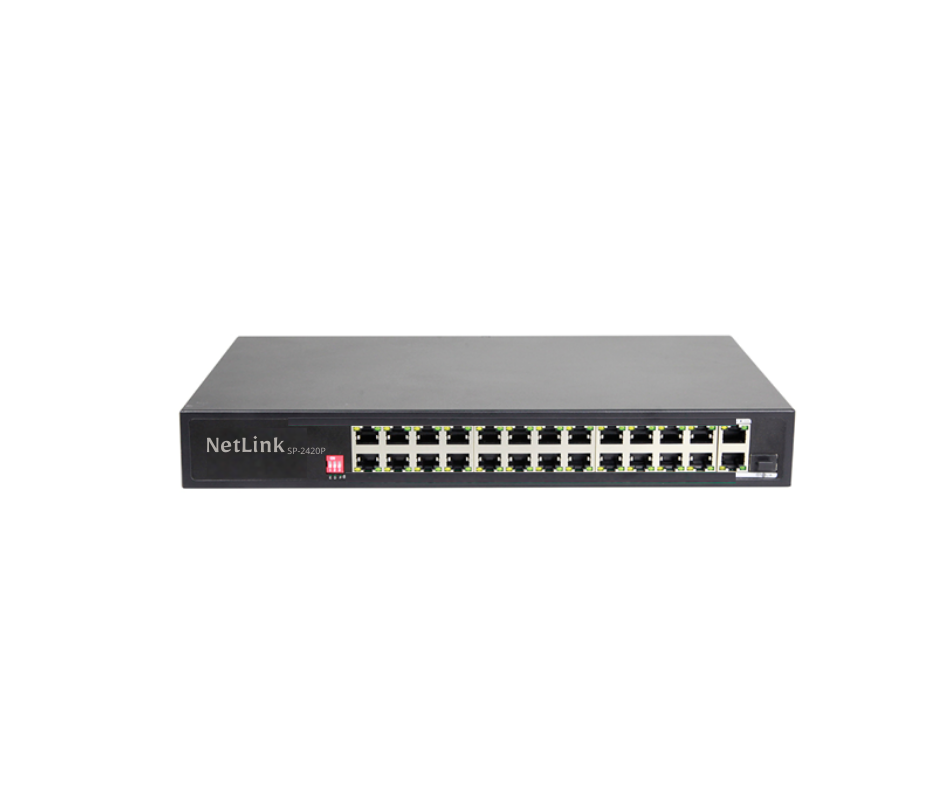

SP-2420P

26-Port Gigabit Uplink AI PoE Switch

SP-2420 is an unmanaged AI PoE switch. It has 24*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports and 1*1000Base-X SFP fiber port (combo port). Port 1-24 can support IEEE802.3af/at standard PoE power supply, and single-port PoE power reaches 30W. The maximum PoE output power is 250W. Port 1-24 can support the PoE watchdog function. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc. through the network cable, to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, parks, banks, hospitals, factories, small and medium-sized enterprises to form a cost-effective network.



Categories: , ,

Description

Key Features:



  • 10/100Mbps access, gigabit TP/SFP uplink
    • 24*10/100M PoE ports and 2*10/100/1000M RJ45 ports and 1*1000M combo port, which is convenient for users to flexibly network to meet various networking needs.
    • Support non-blocking wire-speed forwarding.
    • Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
    • Unmanaged model, plug and play, no configuration, easy to use.



  • Smart PoE power supply function
    • 24*10/100Base-TX RJ45 ports support POE, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
    • IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
    • Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
    • 24*10/100Base-TX PoE ports can support the watchdog function to automatically detect the data communication status in real-time. When the port communication fails, the corresponding port POE will automatically restart to repair the network communication, eliminating the need for manual maintenance.



  • Stable and reliable
    • CCC, CE, FCC, RoHS.
    • Support desktop and 1U/19-inch cabinet installation.
    • Plug and play, no configuration, simple and convenient.
    • Low power consumption, galvanized steel casing, The fan active cooling.
    • Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
    • The user-friendly panel, it can show the device status through the LED indicator of PWR, link, L/A, and PoE.



  • Innovative function
    • long-distance transmission and VLAN mode (E): When the switch status is “ON” (default OFF), Port 1-24 physical VLAN isolation is enabled, suppressing broadcast storms and improving network performance, and port 7-24 rate is reduced to 10M. The use of the existing twisted pair can break through the transmission limit of 100m of twisted pairs, and the transmission distance can reach 250m. On the other hand, it can solve the problem of poor transmission caused by line aging.
    • AI self-healing mode (D): When the switch status is “ON” (default OFF), port 1-24 can support the watchdog function and automatically detects the data communication status in real-time.
    • Real-time power and power priority mode (P): When the switch status is “ON” (default OFF), the POE real-time power grading indicator lights up, quickly understanding the power consumption of the host, and enabling the port priority function to ensure the port 1 power output.
