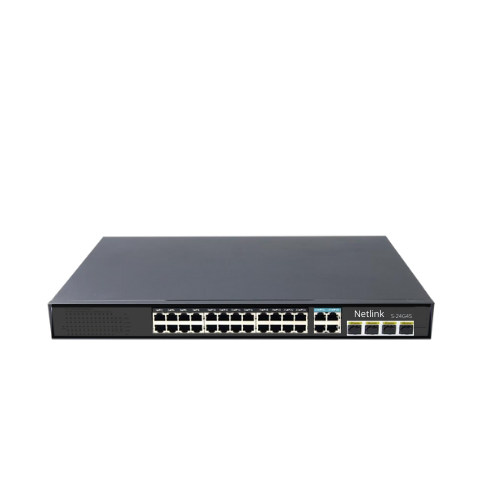

S-24G4S

24-Port 10/100/1000Mbps Switch with 4 1000M Combo Uplink



Key Features:

  • Ports: Provide 24*10/100/1000Mbps Ethernet ports with 4 1000M Combo Uplink
  • Self-adaption: RJ45 port supports 10/100/1000Mbps Auto MDI/MDIX
  • Fiber Port: 4*1000Mbps SFP Uplink
  • Wide Application: Designed for Wi-Fi AP and IP Security camera. VoIP etc.
  • Surge protection: Protect the device from lighting surges and other electrical hazards
  • Easy to use: Plug and play, no configuration required
  • Installation: Rackmount with easy installation







Description

High-performance switch with 4-gigabit Combo Uplink



This 24 ports gigabit Switch provides a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 64Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the Flow Control function of the switch enables routers and servers to directly connect to the Switch for fast and reliable data transfer.



All the RJ45 copper interfaces of the S-24G4S support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports the standard for auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. With 4 SFP module slots available, the SFP uplink port is  ideal for connecting the switch to the network’s backbone, providing more than enough bandwidth and stability for ultra-high-speed data transferring, Beside the SFP can transmit the data with Max 100Km distance with a more economical solution



Excellent Traffic Transmission

The S-24G4S supports a Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm. The high data throughput and 64Gbps internal switching fabric make it ideal for most Gigabit environments, especially when the network is upgraded to a Gigabit environment.

Fanless Design

With its good ventilation design, this switch is able to operate all along without a fan, thus reducing substantial power consumption and creating a noiseless environment. It is definitely the best choice for any working environment without affecting its performance
