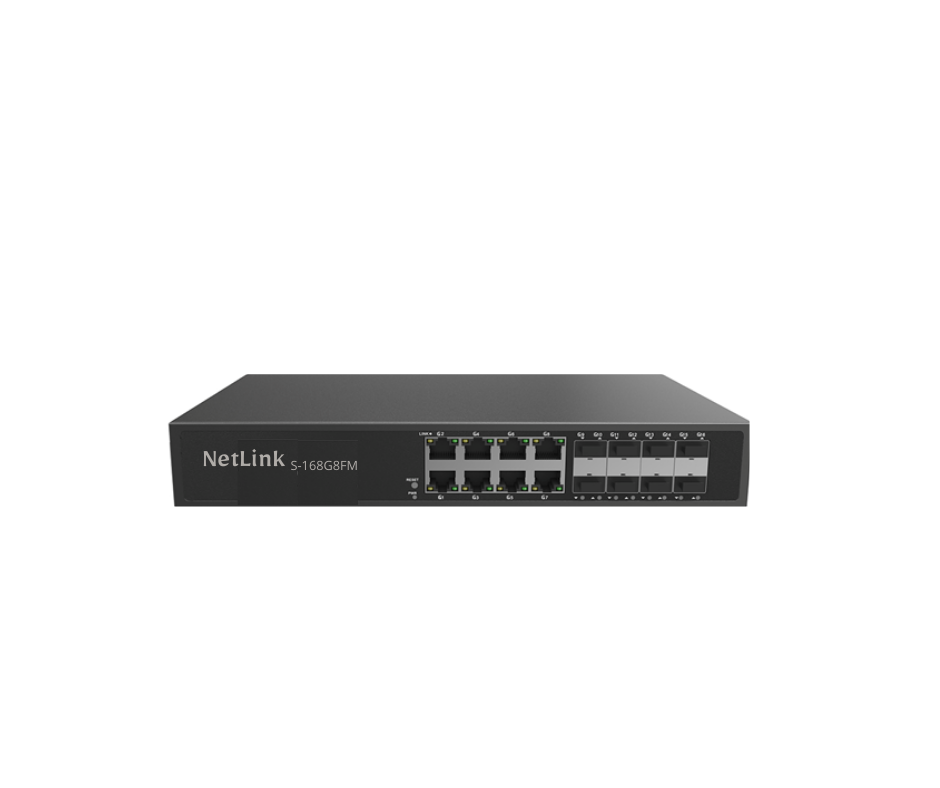

S-168G8FM

16-Port Full Gigabit Managed Ethernet Fiber Switch

The S-168G8FM is a full gigabit managed Ethernet fiber switch. It has 8*10/100/1000Base-T RJ45 ports and 8*100/1000Base-X SFP fiber slot ports. Each port can support wire-speed forwarding, and is easy to manage and maintain. According to the actual application requirements, you can configure multiple application services such as port traffic control, VLAN division, and SNMP through the Web network management mode. It satisfies high-density network application environment and is suitable for medium, large-scale scenes such as hotel, campus, park, shopping mall, scenic spot, hospital, bank to form an economical, efficient and reliable communication network.

Description

Key Features:

  • Full Gigabit access, SFP fiber port uplink
    • All series supports “Gigabit Ethernet port and Gigabit SFP fiber slot port “combination, which enables users to flexibly build networking to meet the needs of various scenarios.
    • Support non-blocking wire-speed forwarding.
    • Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.



  • Strong business processing capability
    • 1Q VLAN, flexible VLAN division, Voice VLAN and Q in Q configuration.
    • QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP WRR.
    • ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
    • IGMP V1/V2 and IGMP Snooping.
    • ERPS/STP/RSTP/MSTP.
    • Static and dynamic aggregation.



  • Security
    • 1X authentication.
    • Port isolation, Storm control.
    • IP-MAC-VLAN-Port binding.



  • Stable and reliable
    • Low power consumption, galvanized steel casing, The Fan active cooling.
    • Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
    • CCC, CE, FCC, RoHS.
    • The user-friendly panel, it can show the device status through the LED indicator of PWR, SYS, Link, L/A.



  • Easy operation and maintenance management
    • Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
    • HTTPS, SSLV3, and SSHV1/V2.
    • RMON, system log, LLDP, and port traffic statistics.
    • CPU monitoring, memory monitoring, Ping test, and cable diagnose.
