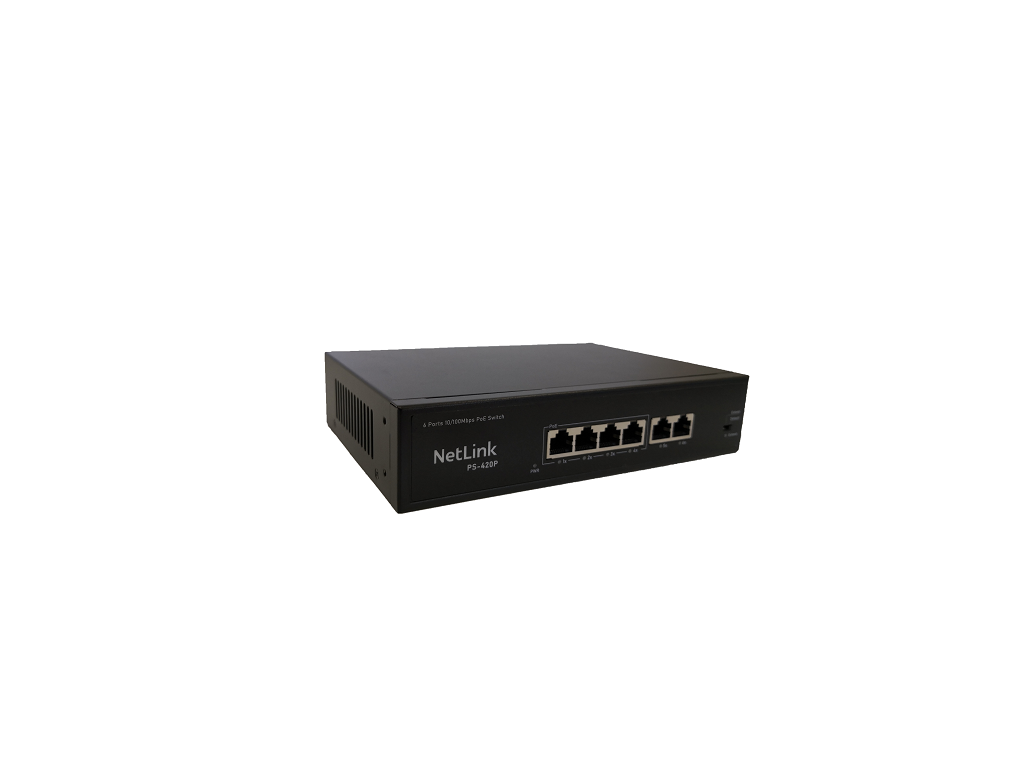

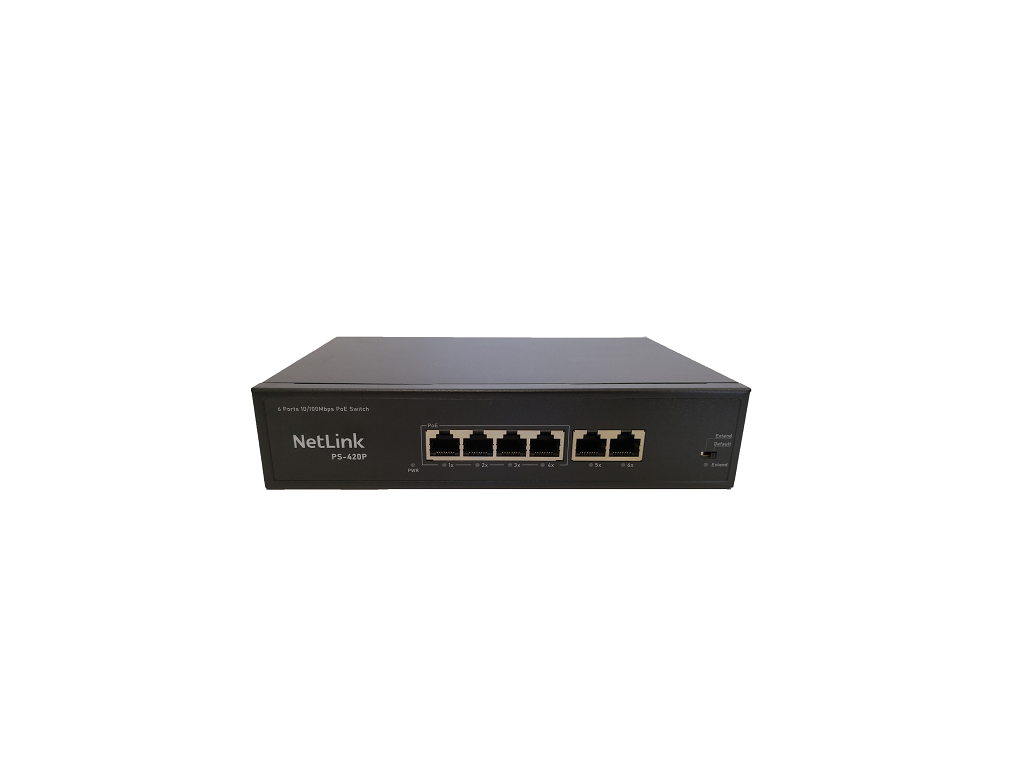

4-Port 100M PoE Switch with 2 Ethernet Uplink

Key Features:

  • Ports: Provide 4*10/100Mbps PoE ports and 2 *100Mbps Uplink
  • PoE Standard:3af/at Power over Ethernet (PoE) Compliant
  • Total Power: Total power budget of 65W and 30W for all single PoE ports
  • Self-adaption: RJ45 port supports 10/100Mbps Auto MDI/MDIX
  • Extend Mode: Extend PoE up to 250m on one single cable
  • Wide Application: Designed for WIFI AP and IP Security camera. VoIP etc.
  • Surge protection: Protect the device from lighting surges and other electrical hazards
  • Considerate Design: Exquisite compact size with fanless design
  • Easy to use: Plug and play, no configuration required
Categories: , ,


Versatile PoE Port

Featuring 4* 10/100Mbps PoE ports which support IEEE802.3af/at standard and 2 * 100Mbps Uplink ports. the PoE switch provides a Maximum power budget of 65W and 30W for single PoE ports selectively, allowing users to have several different Networking products configured

Flexible Extend Mode

With the extended mode, the PoE Switch Series is able to offer more flexible choices for long-range transmission, extending the distance up to 250m, which is greatly helpful to bring a better user experience.

Trust, verify, protect icon - Download on Iconfinder

Surge Protection Design

Reaching 4KV surge protection, the PoE ports owns the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.
